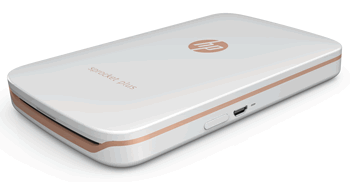

HP Sprocket Plus Printers Specifications

This document is for HP Sprocket Plus Printers.
Review this document for detailed technical data, such as product numbers, system requirements, print speeds, connectivity types, physical dimensions, power supply, paper handling, and printing specifications.
HP Sprocket 2-in-1

Printer specifications

Specification
Description
Product numbers
2FR85A (White)
2FR86A (Black)
2FR87A (Black)
Dimensions and weight
141.9 x 89 x 18 mm (5.59 x 3.50 x 0.71 in)
0.205 kg (0.45 lb)
Connectivity
Bluetooth 4.0
Printer management
HP sprocket app
Power supply
Up to 30 prints per charge
Internal rechargeable battery
900 mAh Li-Polymer
Charge time
Up to 120 minutes
Power consumption
0.73 W (standby)
Average 17.6 W (based on first print)
Maximum 21.5 W at 25° C (77° F)
Print technology
Thermal printing with a ZINK® Zero Ink® printer
note:
The printer does not use ink cartridges to print.
Supported paper
HP Sprocket Plus Photo Paper
5.8 x 8.7 cm (2.3 x 3.4 in)
Borderless printing
Yes
Support file types
BMP
GIF
JPEG
PNG
TIFF (iOS only)
note:
If you send a non-supported file type, the print job does not print.
Paper tray capacity
Up to 10 pages with the orange Print Quality Card (formerly Smartsheet)
Memory
Up to 512 MB
Print quality
330 x 600 dots per inch (dpi)
Print speed
Up to 40 seconds
Mobile operating systems and devices
Supported by Android mobile devices with OS 4.4 and later, and iOS 10.0.2 and later
Compatible with Apple iPhone X, iPhone 8, iPhone 8 Plus, iPhone 7, iPhone 7 Plus, iPhone SE, iPhone 6x, iPhone 6s Plus, iPhone 6, iPhone 6 Plus, iPhone 5s, iPhone 5c, iPhone 5, iPad Pro 12.9-inch (2nd generation), iPad Pro 10.5-inch, iPad (5th generation), iPad Pro 9.7-inch, iPad Pro 12.9-inch (1st generation), iPad Air 2, iPad Air, iPad mini 2, iPad mini 3, iPad mini 4, iPad (4th generation), and iPod touch (6th generation)
Control panel
Power button
Reset button
Charging Indicator Light
Status Indicator Light
Environmental parameters
Operating humidity: 5% to 70% RH (recommended)
Non-operating humidity: 5% to 90% RH
Operating temperature: 5° to 40° C (41° to 104° F)
Recommended operating temperature: 15° to 32° C (59° to 90° F)
Storage temperature: -30° to 60° C (-22° to 140° F)
Warranty
One-year limited hardware warranty
Visit the HP Sprocket homepage for more information.

Regulatory model number

For regulatory identification purposes, your product is assigned a Regulatory Model Number. The Regulatory Model Number for your product is VCVRA-1713. This regulatory number should not be confused with the marketing name (HP Sprocket Plus Photo Printer) or the individual product numbers.

Material Safety Data Sheets

To view Material Safety Data Sheets (MSDS), (in English).

Ozone production

This product generates no appreciable ozone gas (O3).

Recycling program

HP offers an increasing number of product return and recycling programs in many countries and regions, and partners with some of the largest electronic recycling centers throughout the world. HP conserves resources by reselling some of its most popular products. For more information about the recycling of HP products, go to /go/recycle (in English).
